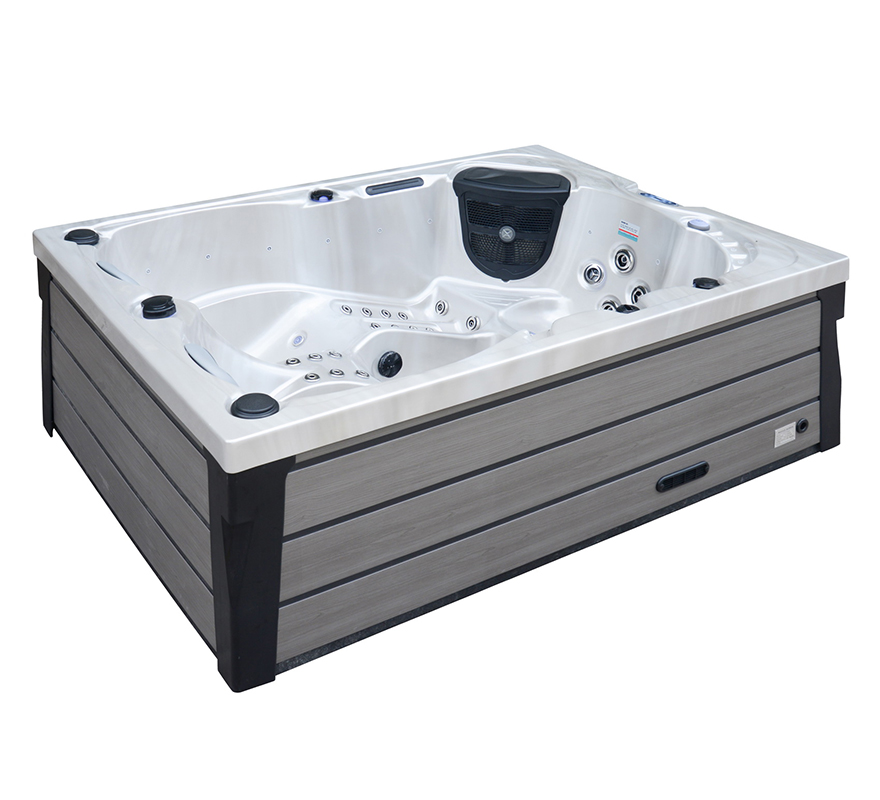

Sunrans 3 Person Acrylic Balboa Plug and Play Hot Tub (SR803D)
Size:2200mmx1560mmx780mm
seat capacity: 3 Persons
Gross weight: 225KG
Packing dimension: 2250mmx800mmX1700mm
Container load:7pcs/20ft; 18pcs/40ft
- Parameters
seat capacity: 3 Persons
Gross weight: 225KG
Packing dimension: 2250mmx800mmX1700mm
Container load:7pcs/20ft; 18pcs/40ft
| Seating Capacity | |
| Seat | 1 Person |
| Lounge | 2 Persons |
| Dimensions/Weight/ Container load | |
| Product dimension | 2200mmx1560mmx780mm |
| Packing dimension | 2250mmx800mmX1700mm |
| Weight - Dry/Filled | 225KG/ 1020KG |
| Water capacity | 210US gallon/795L |
| Container load | 7pcs/20ft; 18pcs/40ft |
| Shell | |
| Shell colors | 10 color available |
| Shell material | US Aristech Acrylic |
| Pumps (UL,CE, KC approved) | |
| Jet pump (two-speed) | 1*3.0HP |
| Air blower | Option |
| Electrics | |
| Control system | US Balboa system (GS100+VL260) |
| Power supply | 110V/220V/380V/50Hz/60Hz |
| Max power consumption: | 2450Watt 10.6A in 230V 50Hz With Plug & Play |
| Heater (America Balboa brand) | 2KW/220-240VAC |
| Underwater lighting | 1pc |
| Skirt corner light | 4pcs |
| Jet Configurations | |
| Jets total (pc) | 27 |
| 5.0 inchesMassage jets (pc) | 1pc direct jet |
| 3.5inches Massage jets (pc) | 10(5pcs D-jet,5pcs Rotating jet) |
| 2.5 inches Massage jets(pc) | 8(2pcs D-jet,6pcs Rotating jet) |
| 1.0inches Massage jets (pc) | 16 |
| Air jets (pc) | Option |
| Filtration | |
| Top mount filter | 1pc |
| Effective Filtration Area | 100 sq. ft. |
| Ozone Generator | 200mg/h |
| Features | |
| 2inches Water diverter(pc) | 1pc with led |
| 1inch Air regulater(pc) | 2 |
| 1.5inches Suctions (pc) | 2 |
| Gate valves (pc) | 2 |
| Drain valve (pc) | 1 |
| EVA Headrest pillows(pc) | 2pcs with led |
| Support frame | #304 Stainless steel |
| Overflow outlet (pc) | N/A |
| Umbrella fountain with LED(pc) | 1 |
| PVC Skirt: | Natual/Brown/Grey available |
| ABS base | 1 |
| PVC Skirt with corner LED | 1 |
