SR860 4-Person Swim Spa with 4 Swim Jets 63 Massage Jets 5xPumps Balboa Control System

Graphic
Detail

SR860 4-Person Swim Spa with 4 Swim Jets 63 Massage Jets 5xPumps Balboa Control System

Size:5700mm×2200mm×1300mm

seat capacity: 4 Persons

Gross weight: 805kg

Packing dimension: 5800mmx2300mmx1400mm

Container load: 1pcs/20ft ; 2pcs/40ft

Parameters

seat capacity: 4 Persons

Gross weight: 805kg

Packing dimension: 5800mmx2300mmx1400mm

Container load: 1pcs/20ft ; 2pcs/40ft

Product Overview

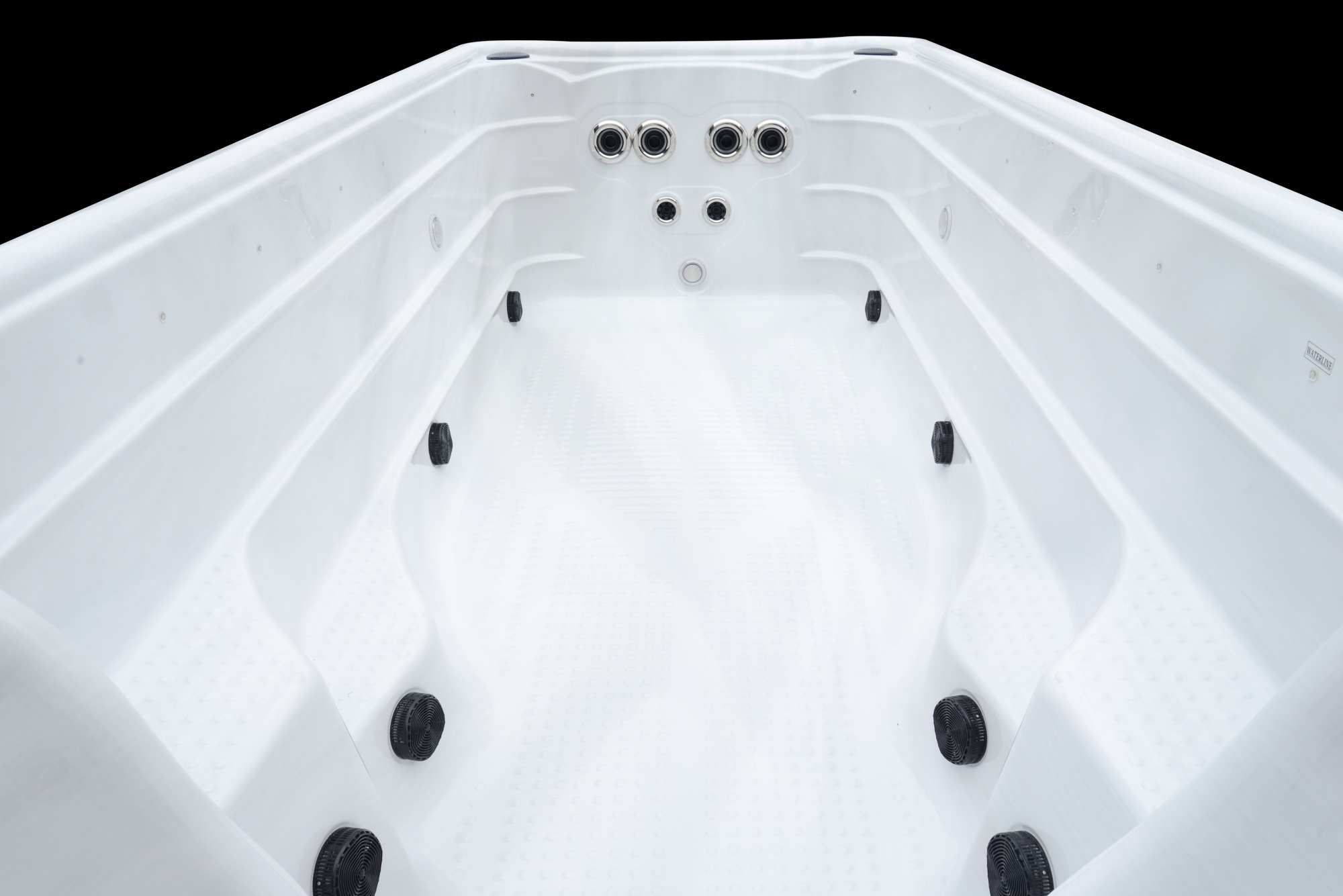

SR860 Swim Spa – Versatile 4-Person Endless Pool with Complete Feature Package

The SR860 is a versatile swim spa for 4 persons, featuring 4 super-size swim jets and 63 massage jets. Measuring 5700×2200×1300mm, this swim spa is powered by three 3.0HP swim pumps and two 2.0HP jet pumps, delivering strong swim current and full-body massage. The 5.5KW Balboa heater, 2×5-inch LED lights, and umbrella waterfall enhance the experience. Includes stainless steel jets, full insulation (shell, cabinet, base), pool cover, and 3-level step. Perfect for year-round fitness and relaxation.

Key Selling Points

1. Spacious 4-Person Design

5700×2200×1300mm: Perfect for family fitness and relaxation
2 Seats + 2 Loungers: Comfortable for all users
4 Headrest Pillows: Personalized comfort

2. Powerful Swim System

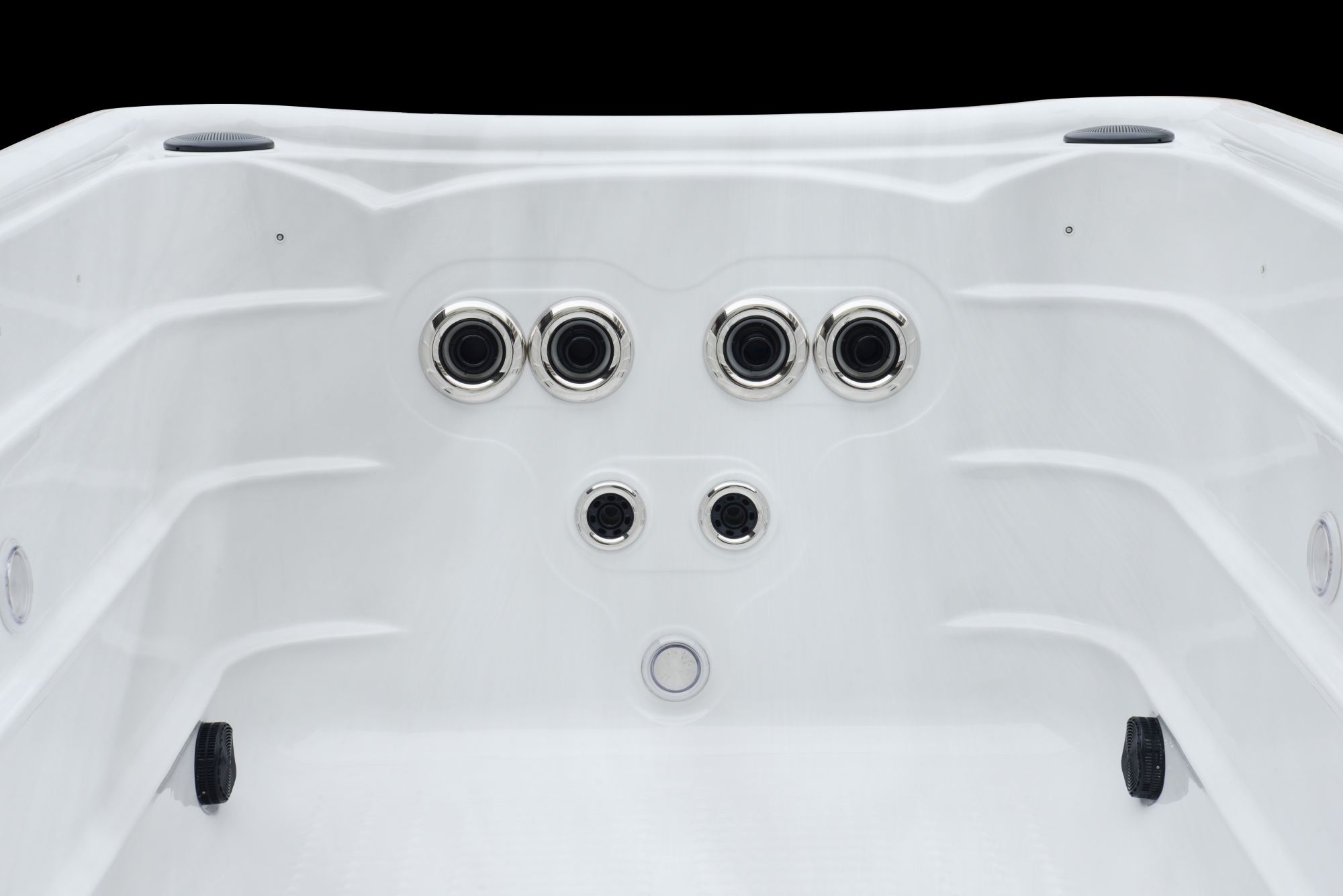

4 Super Size Swim Jets: Creates strong, wide current
3×3.0HP Swim Pumps: Adjustable resistance for effective training
Perfect for low-impact cardio and fitness

3. Comprehensive Hydrotherapy

63 Massage Jets: Full-body coverage
2×2.0HP Jet Pumps: Strong water flow for effective massage
Stainless Steel Jets: Premium look and durability

4. Complete Feature Package (Included)

Full Insulation: Shell + cabinet + base insulation
Stainless Steel Jets: Premium upgrade included
LED Light Around Pool: Stunning visual effect
Fountain with LED Light: Decorative water feature
Pool Cover: Heat retention and protection
3-Level Step: Easy access

5. Powerful Heating

5.5KW Balboa Heater: Quick heating and temperature maintenance
2×5″ LED Lights: Illuminates both swim and spa areas
Umbrella Waterfall with LED: Creates relaxing ambiance

6. Premium Construction

Aristech Acrylic Shell: 4 color options
#304 Stainless Steel Frame: Rust-proof durability
Brown/Grey/Black Skirt Options: Match any decor

7. Complete Filtration

2 Top Mount Filters: 100 sq. ft. effective area
50mg/h Ozone Generator: Chemical-free water sanitation
8 Suctions: Efficient water circulation

Product Specifications

Item	Specification
Model	SR860
Product Dimensions	5700 × 2200 × 1300mm
Packing Dimensions	5800 × 2300 × 1400mm
Dry Weight / Filled Weight	805KG / 9308KG
Water Capacity	8500 Liters / 2244 US Gallons
Seating Capacity	2 Seats + 2 Loungers
Shell Material	Aristech Acrylic
Shell Colors	4 Colors Available
Container Load	1pc/20ft; 2pcs/40ft

Pump System

Pump Type	Specification
Swim Pump 1	3.0HP
Swim Pump 2	3.0HP
Swim Pump 3	3.0HP
Jet Pump 1	2.0HP
Jet Pump 2	2.0HP
Circulation Pump	1.0HP
Air Blower	N/A

Electrical System

Item	Specification

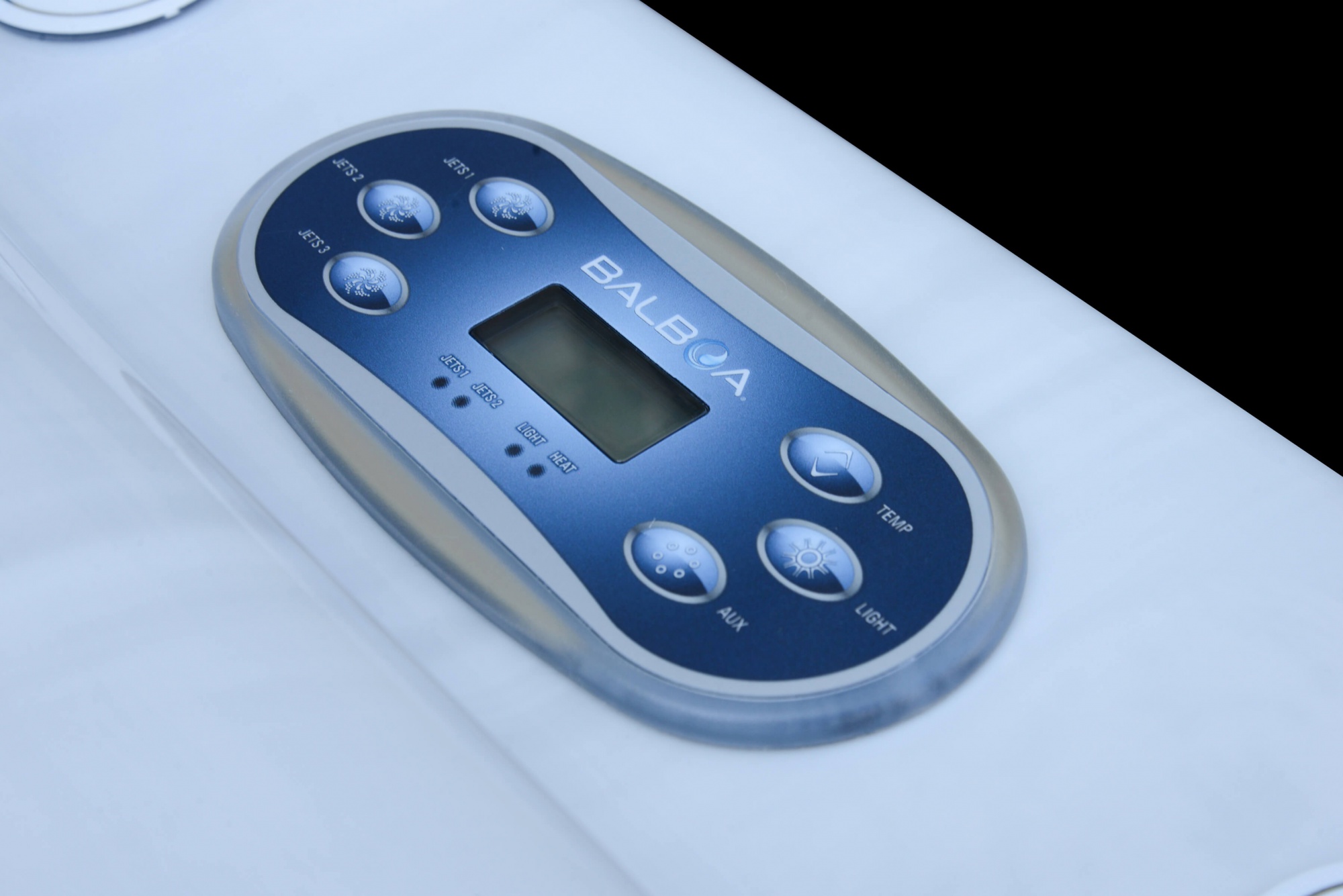

Control System	America Balboa Control
Power Supply	240V 60Hz
Max Power Consumption	16050Watt / 66.8A at 240V 60Hz
Heater	5.5KW / 220-240VAC
Underwater Lighting	5″ LED × 2 pcs

Jet Configurations

Jet Type	Quantity
Total Jets	67 pcs
Super Size Swim Jets	4 pcs
Massage Jets	63 pcs
Air Jets	N/A

Filtration System

Item	Specification
Filter Type	Top Mount Filters × 2 pcs
Effective Filtration Area	100 sq. ft.
Ozone Generator	50mg/h

Features

Feature	Quantity
Water Diverter with LED	2 pcs
Air Regulator	2 pcs
Suctions	8 pcs
Gate Valves	12 pcs
Drain Valve	1 pc
Headrest Pillows	4 pcs
Support Frame	#304 Stainless Steel
Overflow Outlet	1 pc
Umbrella Waterfall with LED	1 pc
Skirt	Brown/ Grey / Black color
Base Bottom	1 Set

Included Premium Features

No.	Feature
1	Stainless Steel Jets
2	LED Light Around the Pool
3	Shell Insulation + Cabinet Insulation + Base Insulation
4	Fountain with LED Light
5	Pool Cover
6	3-Level Step

Established in 2007 and headquartered in Zengcheng District, Guangzhou, Guangzhou Sunrans Sanitary Ware Co., Ltd. is a National High-Tech Enterprise and a recognized 'Specialized and Sophisticated' enterprise in Guangdong Province. With over 16 years of dedicated experience, Sunrans has evolved into a premier global manufacturer specializing in outdoor spas, swim spas, smart home wellness equipment, and comprehensive water treatment solutions.

Spa & Hot Tub Packaging Process

Step 1: Cleaning & Polishing
Deep clean shell, frame, and motors. Wax accessories and reinstall.

Step 2: Interior Protection
Apply transparent film to block dust. Wrap with EPE foam, leaving 50cm extra at top to fold over edges.

Step 3: Corner & Body Protection
Fix thick EPE blocks to all four corners. Wrap entire body with bubble wrap, leaving 50cm extra at top.

Step 4: Base Reinforcement
Add extra-thick EPE blocks to landing side. Attach insulation board to opposite side.

Step 5: Shrink Wrapping
Cover with heat-shrink bag and seal tightly. Apply model stickers and shipping marks.

Step 6: Crating & Securing
Position tub on wooden pallet (padded side down). Secure with heavy-duty straps in '#' pattern.

Q1: Who is Sunrans?
A: Sunrans is a leading manufacturer of spas, swim spas, saunas, and massage bathtubs with nearly 20 years of experience, exporting to over 80 countries worldwide.

Q2: What certifications do your products have?
A: We hold CE, ETL, UL, RoHS, SAA, and ISO9001 certifications, ensuring compliance with international safety and quality standards.

Q3: What is your MOQ?
A: Sample order: 1 unit. Bulk order: 5-10 units per model. Custom OEM/ODM: negotiable based on requirements.

Q4: What payment methods do you accept?
A: We accept T/T (30% deposit, 70% before shipment), L/C at sight, and Western Union for sample orders.

Q5: What are your shipping methods?
A: Sea freight (FOB, CIF, DDP) for bulk orders. Air freight or express (DHL/FedEx) for samples.

Q6: What is the typical delivery time?
A: Samples: 7-15 days. Bulk orders: 30-45 days production + 20-40 days shipping. Custom projects: negotiable.

Q7: Do you support OEM/ODM customization?
A: Yes, we offer full customization including size, design, materials, and branding. MOQ applies for custom projects.

Q8: What is your warranty policy?
A: 5 years on structure, 3 years on electrical components, 1 year on accessories. Global after-sales support available 24/7.

Q9: Can I visit your factory?
A: Yes, we welcome factory visits! Our facilities are in Guangzhou, Huizhou, and Hubei. Please schedule in advance.

Q10: How can I get a quote?
A: Contact our sales team with your requirements (products, quantity, destination), and we'll provide a detailed quote within 24 hours.
