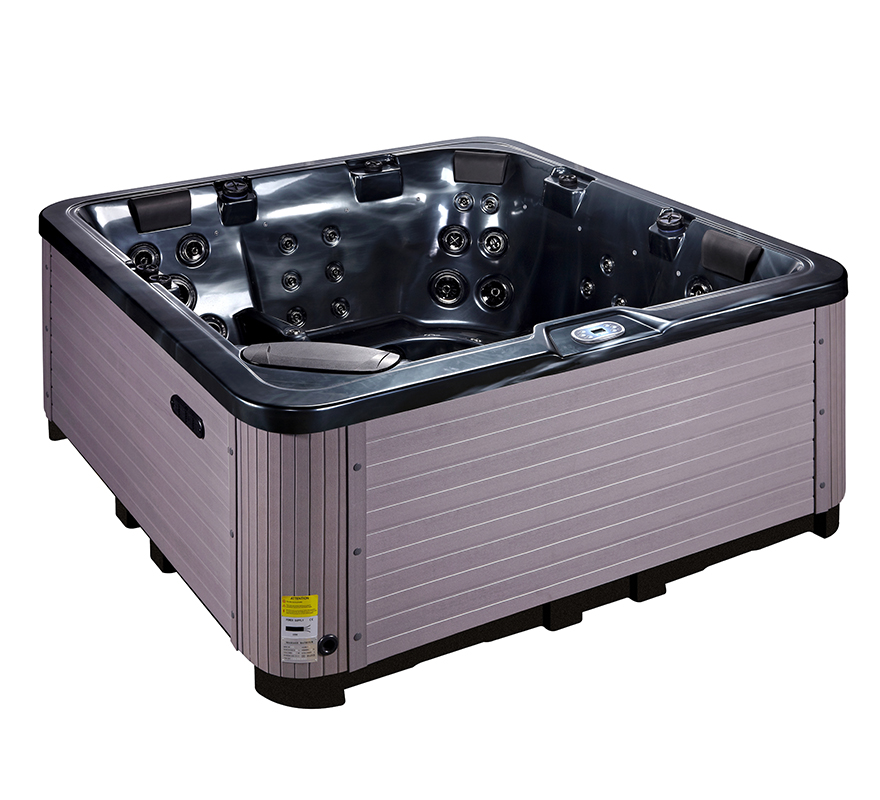

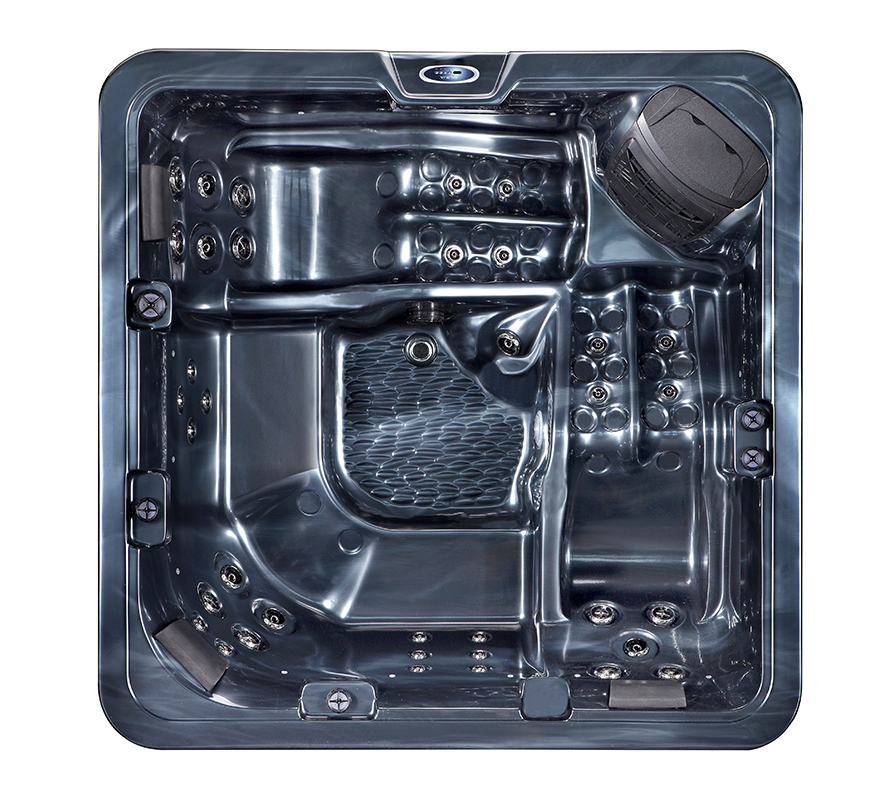

Model SR817C

Size：2200x2200x945mm

seat capacity: 5 Persons

Gross weight: 395kg

Packing dimension: 2300x2300x1095mm

Container load: 5pcs/20ft; 12pcs/40ft

seat capacity: 5 Persons

Gross weight: 395kg

Packing dimension: 2300x2300x1095mm

Container load: 5pcs/20ft; 12pcs/40ft

Seating
Seating Capacity	3 Persons
Lounge	2 Persons
Dimensions/Weight/ Container load
Product dimension	2200x2200x945mm
Packing dimension	2300x2300x1095mm
Weight - Dry/Filled	395KG/ 1595KG
Water capacity	316 US Gallon/ 1200Liters
Container load	5pcs/20ft; 12pcs/40ft
Shell
Shell colors	10 color available
Shell material	Aristech Acrylic
Pumps (UL,CE, KC approved)
Jet pump	1*3HP( two speed)
Air blower	options
Electrics
Control system	Chinese Pulan control (P25B37 + PB554)
Max power consumption:	3400Watt 14.8A in 230V 50Hz With Plug & Play 16 amps
Heater (America Balboa brand)	3KW/220-240VAC
Underwater lighting	5″ LED
Jet Configurations
Jets total (pc)	40
5" Massage jets (pc)	0
3.5" Massage jets (pc)	16
1" Massage jets (pc)	24
Air jets (pc)	options
Filtration
Top mount filter (pc)	1
Effective Filtration Area	100 sq. ft.
Ozone Generator	200mg/h
Features
Water diverter(pc)	1
Air regulater(pc)	3
Suctions (pc)	1
Gate valves (pc)	2
Drain valve (pc)	1
Headrest pillows(pc)	3
Support frame	High strength ABS support column
Overflow outlet (pc)	1
Skirt:	Grey H03B/ Brown H04B/Black H06B
ABS base	1
