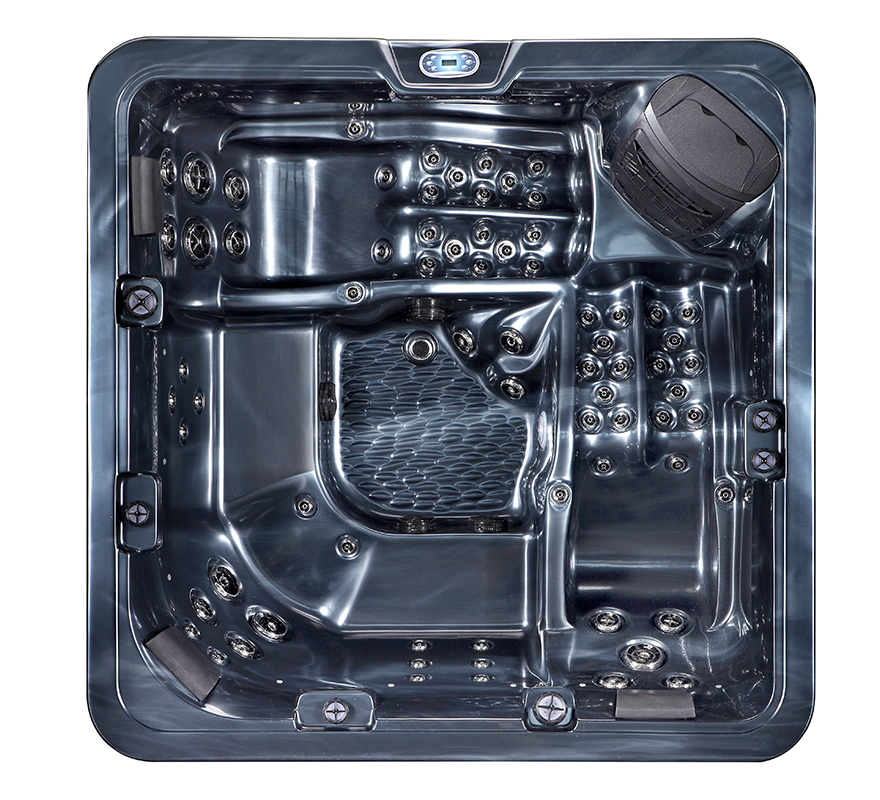

Model SR817B

Size：2200x2200x945mm

seat capacity: 5 Persons

Gross weight: 395kg

Packing dimension: 2300x2300x1095mm

Container load:5pcs/20ft; 12pcs/40ft

seat capacity: 5 Persons

Gross weight: 395kg

Packing dimension: 2300x2300x1095mm

Container load:5pcs/20ft; 12pcs/40ft

Seating
Seating Capacity	3 Persons
Lounge	2 Persons
Dimensions/Weight/ Container load
Product dimension	2200x2200x945mm
Packing dimension	2300x2300x1095mm
Weight - Dry/Filled	395KG/ 1595KG
Water capacity	316 US Gallon/ 1200Liters
Container load	5pcs/20ft; 12pcs/40ft
Shell
Shell colors	10 color available
Shell material	Aristech Acrylic
Pumps (UL,CE, KC approved)
Jet pump	2x2.0HP
Circulation pump	1x0.5HP
Air blower	options
Electrics
Control system	America Balboa control
Max power consumption:	6500Watt 28.3A in 230V 50Hz
Heater (America Balboa brand)	3KW/220-240VAC
Underwater lighting	5″ LED
Jet Configurations
Jets total (pc)	78
5" Massage jets (pc)	5 (Direct jets)
3.5" Massage jets (pc)	13
1" Massage jets (pc)	60
Air jets (pc)	options
Filtration
Top mount filter (pc)	2
Effective Filtration Area	100 sq. ft.
Ozone Generator	200mg/h
Features
Water diverter(pc)	2
Air regulater(pc)	3
Suctions (pc)	4
Gate valves (pc)	3
Drain valve (pc)	1
Headrest pillows(pc)	3
Support frame	High strength ABS support column
Overflow outlet (pc)	1
Skirt:	Grey H03A/ Brown H04A/Black H06A
ABS base	1
