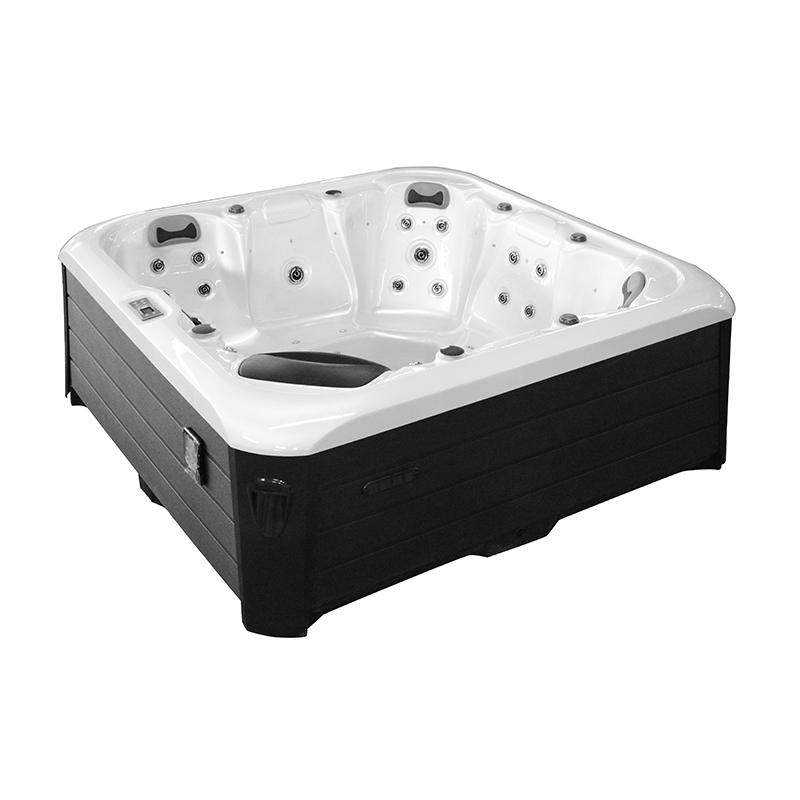

Sunrans Outdoor 6 Person Balboa Spa Hot Tub (SR806A)

seat capacity: 6 Persons

Gross weight: 395KG

Packing dimension: 2330mmx2330mmX1040mm

Container load: 5pcs/20ft; 10pcs/40ft

seat capacity: 6 Persons

Gross weight: 395KG

Packing dimension: 2330mmx2330mmX1040mm

Container load: 5pcs/20ft; 10pcs/40ft

Seating
Seating Capacity	5 Persons
Lounge	1 Person
Dimensions/Weight/ Container load
Product dimension	2230mmx2230mmx940mm
Packing dimension	2330mmx2330mmX1040mm
Weight - Dry/Filled	395KG/1645KG
Water capacity	330US Gallon/1250Liters
Container load	5pcs/20ft; 10pcs/40ft
Shell
Shell colors	10 colors available
Shell material	US Aristech Acrylic
Pumps (UL,CE, KC approved)
Jet pump 1	2.0HP
Jet pump 2	2.0HP
Circulation pump	400w
Air blower	N/A
Electrics
Control system	US Balboa system (GS510DZ+VL801D)
Power supply	220V/50HZ
Heater (America Balboa brand)	3KW/220-240VAC
Underwater lighting	1pc
Skirt corner LED light	12pcs
Logo LED light	3pcs
Jet Configurations
Jets total (pc)	49
5.0 inches Massage jets (pc)	4
3.5inches Massage jets (pc)	22(10pcs D-jet,12pcs Rotating)
2.5inches Massage jets (pc)	2
1.0inches Massage jets (pc)	21
Air jets (pc)	N/A
Filtration
Top mount filter	3pcs
Effective Filtration Area	100 sq. ft.
Ozone Generator	200mg/h
Features
Water diverter(pc)	1
Air regulater(pc)	4
Stainless steel fountain	3
2inches Suctions (pc)	3
Drain valve (pc)	1
EVA Headrest pillows(pc)	3
Support frame	#304 thickening Stainless steel
Overflow outlet (pc)	N/A
