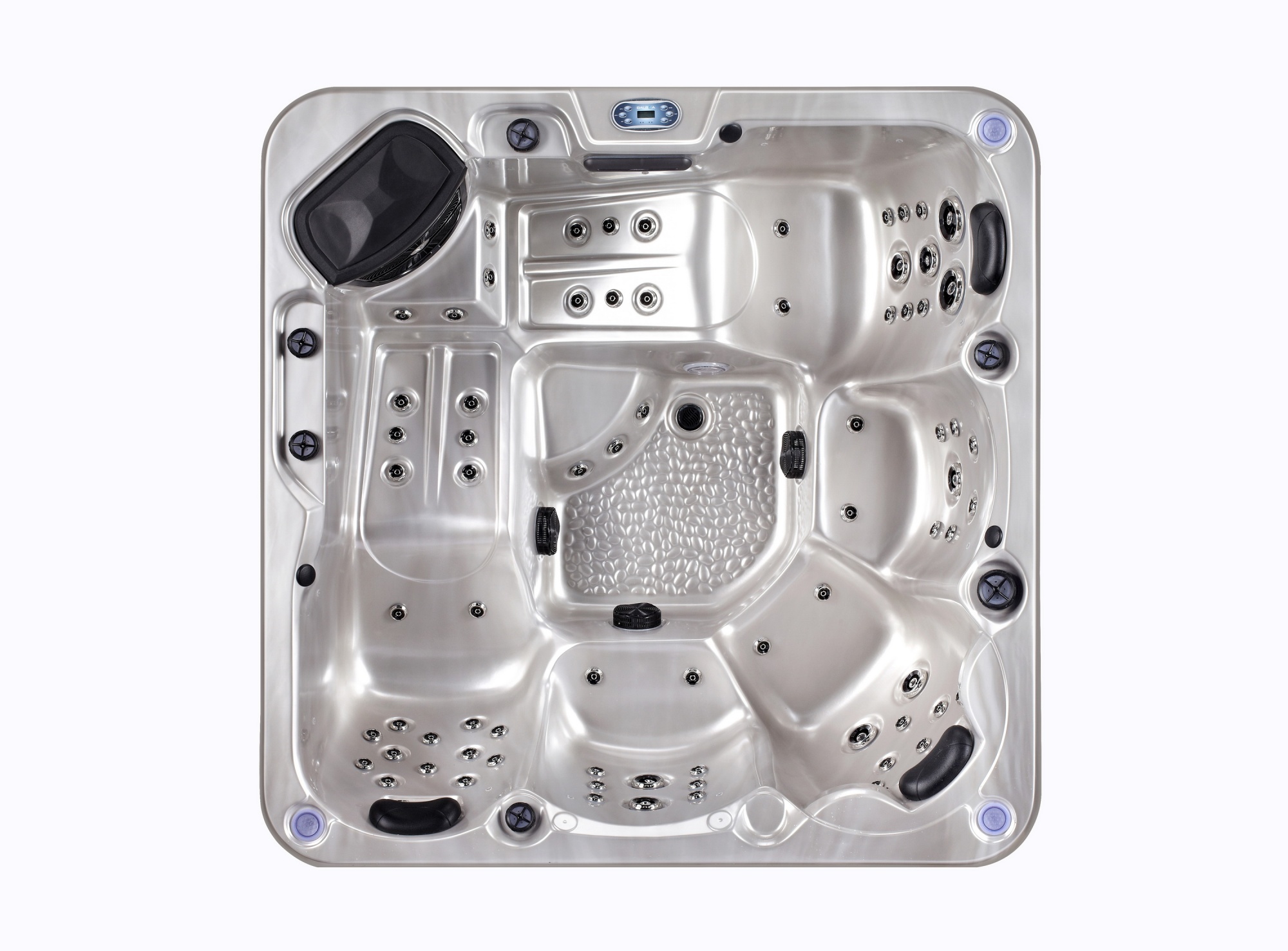

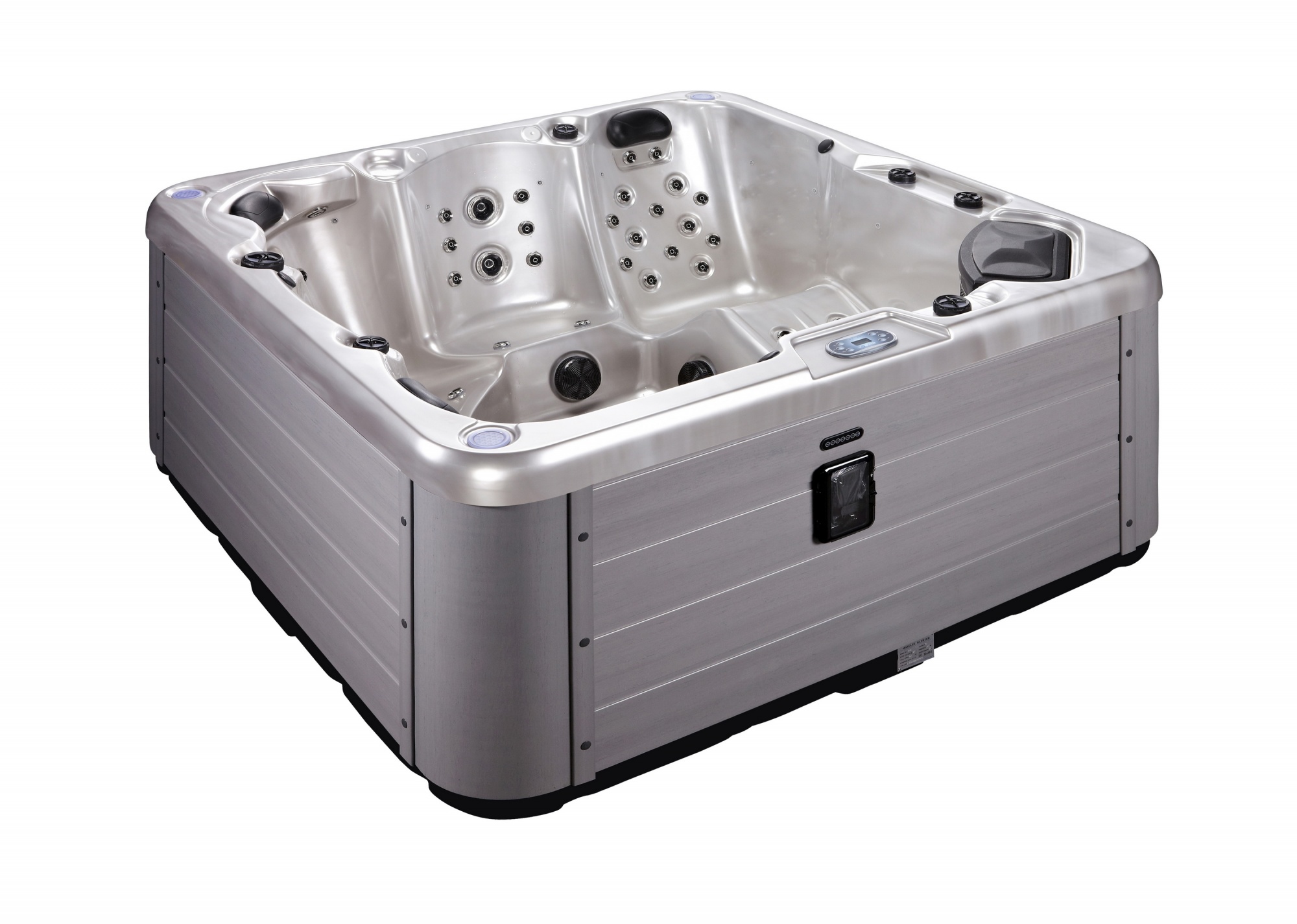

Sunrans Outdoor 5 Persons Hot Tub 82pcs Jets Spa Tub SR816A

seat capacity: 5 Persons

Gross weight: 295kg

Packing dimension: 2100x2100x1000mm

Container load: 6pcs/20ft; 13pcs/40ft

seat capacity: 5 Persons

Gross weight: 295kg

Packing dimension: 2100x2100x1000mm

Container load: 6pcs/20ft; 13pcs/40ft

Seating
Seating Capacity	3 Persons
Lounge	2 Persons
Dimensions/Weight/ Container load
Product dimension	2000x2000x900mm
Packing dimension	2100x2100x1000mm
Weight - Dry/Filled	295KG/ 1169KG
Water capacity	231 US Gallon/ 874Liters
Container load	6pcs/20ft; 13pcs/40ft
Shell
Shell colors	10 color available
Shell material	Aristech Acrylic
Pumps (UL,CE, KC approved)
Jet pump	2x3.0HP
Circulation pump	1x0.5HP
Air blower	options
Electrics

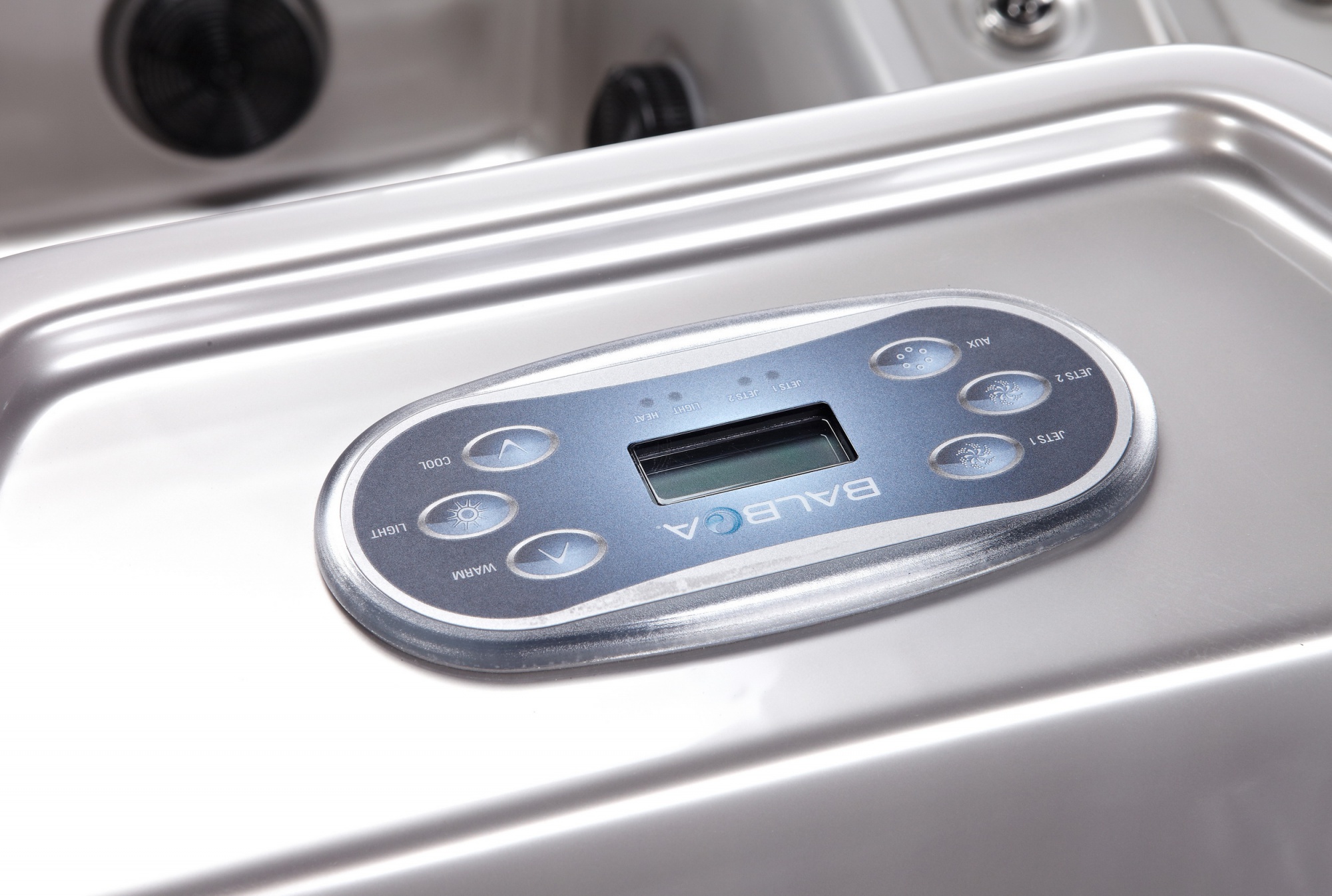

Control system	America Balboa control
Max power consumption:	8000Watt 34.8A in 230V 50Hz
Heater (America Balboa brand)	3KW/220-240VAC
Underwater lighting	5″ LED

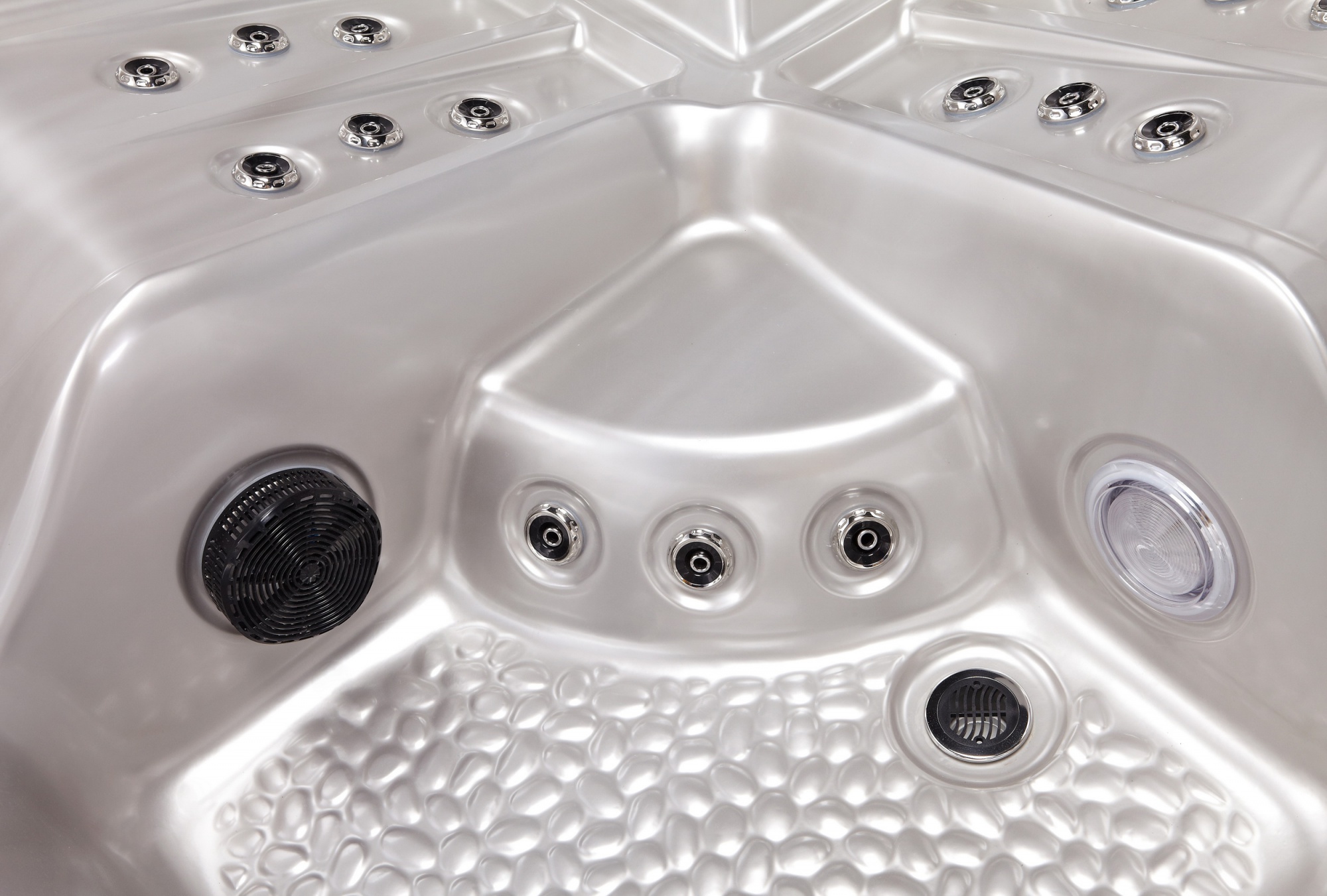

Jet Configurations
Jets total (pc)	82
5" Massage jets (pc)	2
3.5" Massage jets (pc)	7 (4pcs D-jet,3pcs Rotating jet)
2.5" Massage jets (pc)	2
1" Massage jets (pc)	71
Air jets (pc)	options
Filtration

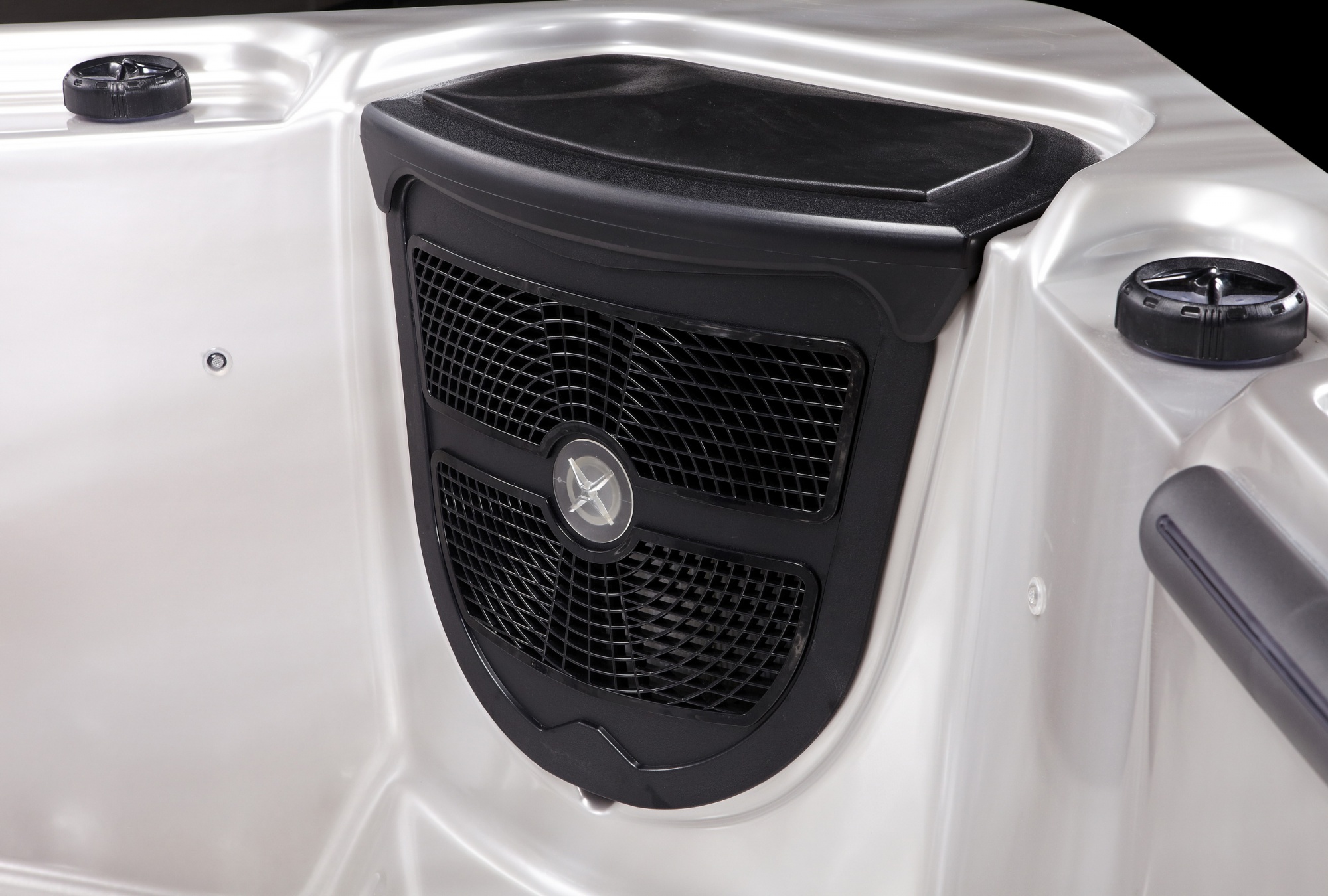

Top mount filter (pc)	2
Effective Filtration Area	100 sq. ft.
Ozone Generator	200mg/h
Features
Water diverter(pc)	1
Air regulater(pc)	4
Suctions (pc)	3
Gate valves (pc)	2
Drain valve (pc)	1
Headrest pillows(pc)	3
Support frame	#304 Stainless steel
Overflow outlet (pc)	1
Skirt:	Grey H03A/ Brown H04A/Black H06A
