SR855 – Luxury Swim Spa | 2 Seats | 44 Jets | Triple 3.0HP Swim Pumps | Energy Saving
Product Overview

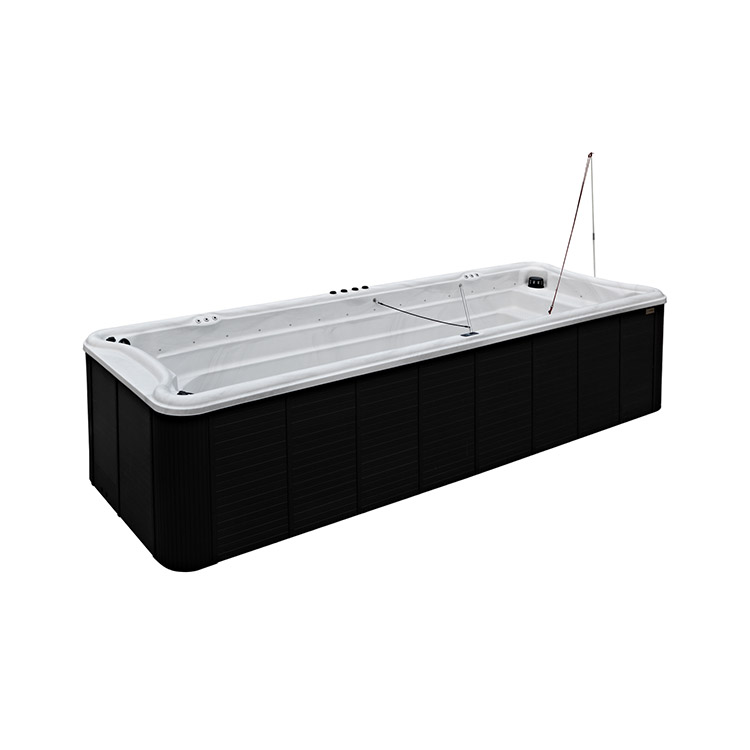

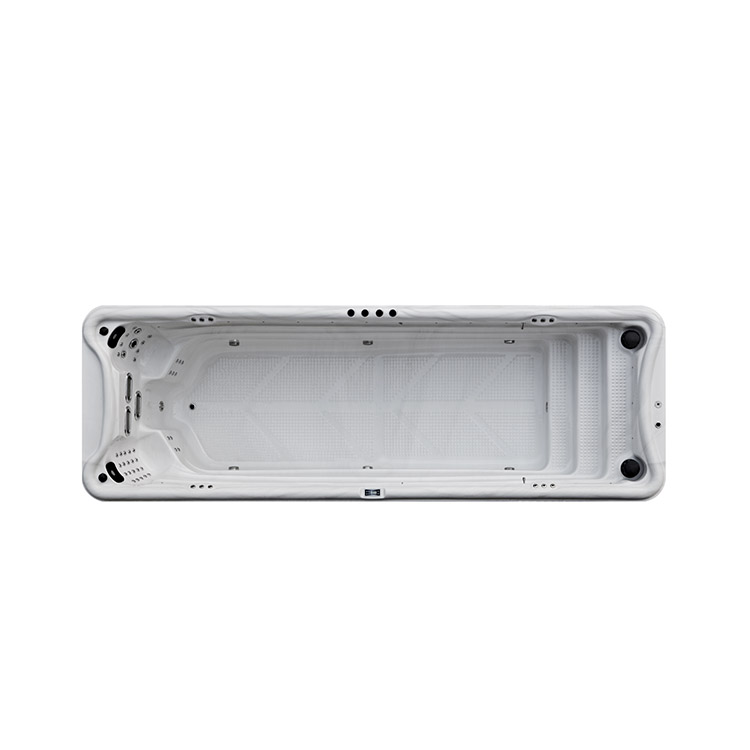

The SR855 stands out as a purpose-built swim spa that merges serious exercise functionality with therapeutic massage zones. Measuring 6700×2200×1670mm, this 2-seater unit incorporates a generous swimming channel powered by three 3.0HP DXD-330A pumps, enabling an adjustable current suitable for lap training and rehabilitation. At the opposite end, a compact spa zone houses 44 stainless steel jets, offering targeted relief for tired muscles. The entire assembly rests on a #304 stainless steel chassis, while the acrylic shell comes in 12 contemporary hues. Ideal for fitness-conscious homeowners who lack space for a full-length pool, the SR855 delivers an all-in-one aquatic wellness station with German-inspired engineering and Chinese cost-effectiveness.
Key Advantages & Features
Dual-Zone Swim & Spa Configuration
Unlike conventional spas, the SR855 dedicates the majority of its length to swimming. Three 3.0HP pumps generate a smooth, adjustable current that challenges swimmers of all levels. A dedicated 1HP circulation pump ensures water clarity, while the separate 400W unit handles the spa zone's filtration.
44-Jet Massage Array with U-Shape Power Jets
The swim section features 3 super-sized 15-inch U-shape jets that produce a broad, fatigue-reducing current. The spa zone adds 38×50mm direct jets, 1×3-inch direct, 1×3-inch rotating, 1×5-inch rotating, and 3×15-inch U-shape jets (shared). This hybrid layout means you can switch from an invigorating swim to a soothing back massage without leaving the water.
Commercial-Grade Pump & Heating Plant
A total of five pumps work together: three 3.0HP units for propulsion, one 400W circulation pump, and one 1HP circulation pump. The 3KW inline heater maintains stable temperatures even during heavy use, and the dual Babbitt BP6013G3 control panels (one for each zone) provide independent operation.
Advanced Filtration & Ozone Sanitation
Two 214-style filter housings (each with a replaceable cartridge) and a single top-mount filter work alongside a 220V ozone generator. Three black ozone nozzles distribute purified water throughout the system. The effective filtration area totals 100 sq. ft., ensuring crystal-clear water with minimal chemical intervention.
Water Feature Package for Enhanced Ambience
Twelve small fountains and one circulation pump exhaust fountain create a soothing visual display. Two 2-inch cross water diverters let you direct flow to preferred jets, while four 1-inch water level regulators help fine-tune the experience. The twin 5-inch LED underwater lights illuminate both swim and spa zones.
Thoughtful Accessories for Active Users
Included items: a set of paddle sports equipment (paddles + fishing rod), two curved handrails (152mm and 812mm), and two KB257 headrest pillows. The 21 LED water level lights add a modern touch, and the optional Bluetooth audio system can pipe music directly into the swim area.
Technical Specifications
Application Scenarios
Home Fitness Enthusiast
The SR855 transforms a corner of your backyard into a personal training studio. The adjustable current allows interval training, steady-state swimming, or low-impact rehabilitation. After the workout, move to the spa zone for a well-earned muscle flush.
Physiotherapy & Rehabilitation Centre
Clinicians can use the consistent current for gait training and the massage jets for myofascial release. The 6.7m length accommodates most therapeutic exercises, and the included handrails assist patients with limited mobility.
Luxury Residential Compound
Property developers can install the SR855 as a shared amenity. Its compact footprint suits multiple units, while the robust pumps handle frequent daily use. The 12 colour options allow customisation to match the compound's design language.
Hotel & Resort Swim Spa
Guests appreciate the ability to swim against a current regardless of pool length. The SR855's spa zone adds a luxury touch, and the optional Bluetooth audio can stream relaxing background music. The UV-resistant acrylic and 304 frame withstand coastal environments.
Multi-Generational Household
Older family members benefit from the buoyancy and warmth of the spa zone, while younger members use the swim channel for exercise. The handrails and step options (available as extras) improve accessibility.
Installation & User Experience
Siting & Foundation
The SR855 requires a level concrete pad measuring at least 6.9×2.4m with a load-bearing capacity of 500kg/m². Allow 1m clearance at the head and foot for pump access. The spa ships fully assembled; a crane or flatbed truck with a tail lift is needed for final positioning.
First Use Procedure
- Inspect all plumbing unions for shipping tightness.
- Place the spa on its prepared base and connect electrical supply (220V/50Hz, 40A dedicated circuit).
- Fill through the filter housing until water reaches the designated line.
- Power on the control panel and set swim pump speed (start at 40% power).
- Add start-up chemicals and run filtration for 4 hours before entering.
Pro Tips for Swim Training
- Use the electronic switch (V-209H momentary start) to quickly toggle between swim modes.
- Adjust flow via the Babbitt TP600B panel – lower speeds for technique drills, higher for sprint work.
- Clean the 214 filter cartridges weekly if using the spa daily.
- The paddle sports equipment is for leisure use only, not competitive training.
Winter Usage Notes
The optional full insulation package (body, pipe, and skirt) significantly reduces heat loss. Always keep the cover on when not swimming. The 3KW heater can maintain 28°C even in freezing conditions, but expect higher energy consumption.
Frequently Asked Questions
Q1: Can two people swim simultaneously in the SR855?
A: Yes, but the channel is best suited for one swimmer at a time. A second person can use the spa zone or perform stationary exercises while the first swims. The 3.0HP pumps generate a 1.5m-wide current that fills the channel effectively.
Q2: How does the current compare to a traditional lap pool?
A: The three 3.0HP pumps produce a current of approximately 1.2m/s at maximum power – equivalent to a moderate pace. Serious swimmers may want to upgrade to the optional higher-flow pump configuration. For most home users, the standard setup is perfectly adequate for fitness.
Q3: Are the U-shape 15-inch jets suitable for therapy?
A: Absolutely. While designed primarily for swimming, these large jets can be redirected to provide broad, low-pressure massage – excellent for general relaxation or post-exercise cooling. The separate spa jets offer more targeted pressure.
Q4: Is professional installation mandatory?
A: We strongly recommend using a licensed electrician and a spa technician for final hook-up. The electrical requirements (40A dedicated circuit, RCD protection) must be met precisely. The physical positioning can be done by any competent team with equipment capable of moving 950kg.
Q5: What is the water turnover rate?
A: With the circulation pumps running continuously, the entire 6,000-litre volume passes through the filters approximately 2.5 times per hour. The ozone generator runs on a cycle coinciding with filtration, providing ongoing sanitation without overdosing chemicals.
Q6: Can I use the SR855 in a saltwater chlorination system?
A: The #304 stainless steel frame and acrylic shell are saltwater-compatible, but the 214 filter cartridges will wear faster. We recommend a traditional chlorine or bromine setup for longest component life. Consult your dealer if you prefer a salt system.
Q7: How energy efficient is the SR855?
A: With the optional insulation package and a well-fitting cover, the SR855 consumes approximately 8-12 kWh per day when kept at 32°C in moderate climates. Without insulation, expect 15-20 kWh. The 3KW heater cycles rather than running continuously.
Q8: What warranty applies to the swim pumps?
A: The DXD-330A pumps carry a 2-year manufacturer's warranty. This covers electrical and mechanical defects but excludes damage from running dry or debris ingestion. Routine maintenance (shaft seal replacement) is not covered.
