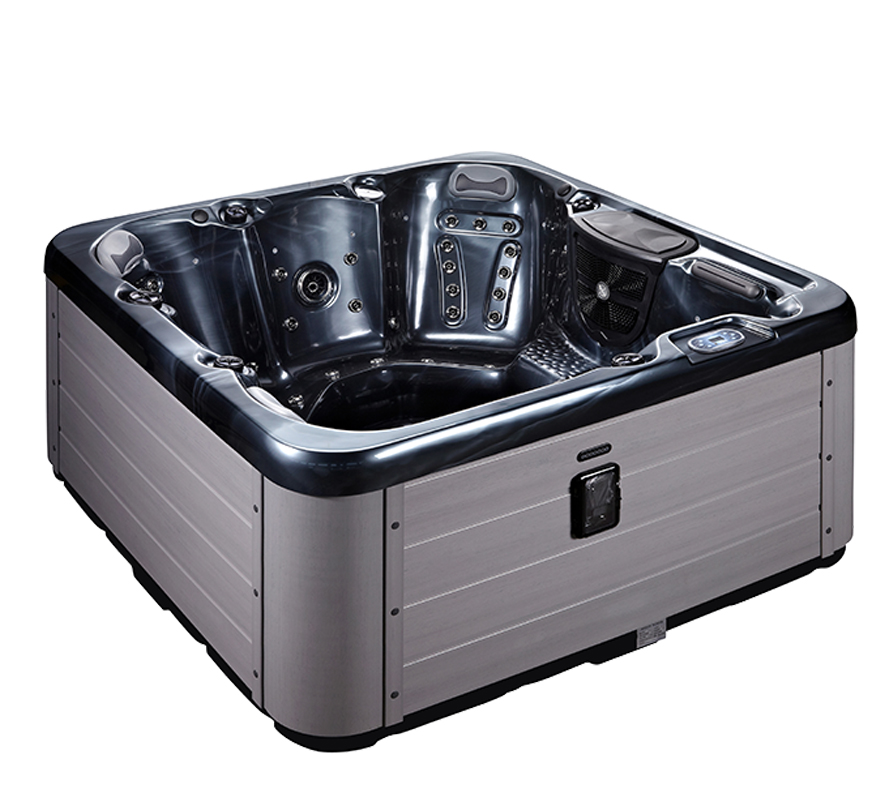

Model SR809B

Size：1900x1900x900mm

seat capacity: 5 Persons

Gross weight: 290KG

Packing dimension: 2000x2000x1000mm

Container load: 6pcs/20ft; 13pcs/40ft

seat capacity: 5 Persons

Gross weight: 290KG

Packing dimension: 2000x2000x1000mm

Container load: 6pcs/20ft; 13pcs/40ft

Seating
Seating Capacity	4 Persons
Lounge	1 Persons
Dimensions/Weight/ Container load
Product dimension	1900x1900x900mm
Packing dimension	2000x2000x1000mm
Weight - Dry/Filled	290KG/ 1160KG
Water capacity	225 US Gallon/ 850Liters
Container load	6pcs/20ft; 13pcs/40ft
Shell
Shell colors	10 color available
Shell material	Aristech Acrylic
Pumps (UL,CE, KC approved)
Jet pump	2x2.0HP
Circulation pump	1x0.5HP
Air blower	options
Electrics
Control system	America Balboa control
Max power consumption:	6500Watt 28.3A in 230V 50Hz
Heater (America Balboa brand)	3KW/220-240VAC
Underwater lighting	5″ LED
Jet Configurations
Jets total (pc)	50
5" Massage jets (pc)	2
3.5" Massage jets (pc)	8 (6pcs D-jet, 2pcs Rotating jet)
1" Massage jets (pc)	40
Air jets (pc)	options
Filtration
Top mount filter (pc)	2
Effective Filtration Area	100 sq. ft.
Ozone Generator	200mg/h
Features
Water diverter(pc)	1
Air regulater(pc)	3
Suctions (pc)	3
Gate valves (pc)	2
Drain valve (pc)	1
Headrest pillows(pc)	3
Support frame	#304 Stainless steel
Overflow outlet (pc)	1
Skirt:	Grey H03A/ Brown H04A/Black H06A
ABS base	1
