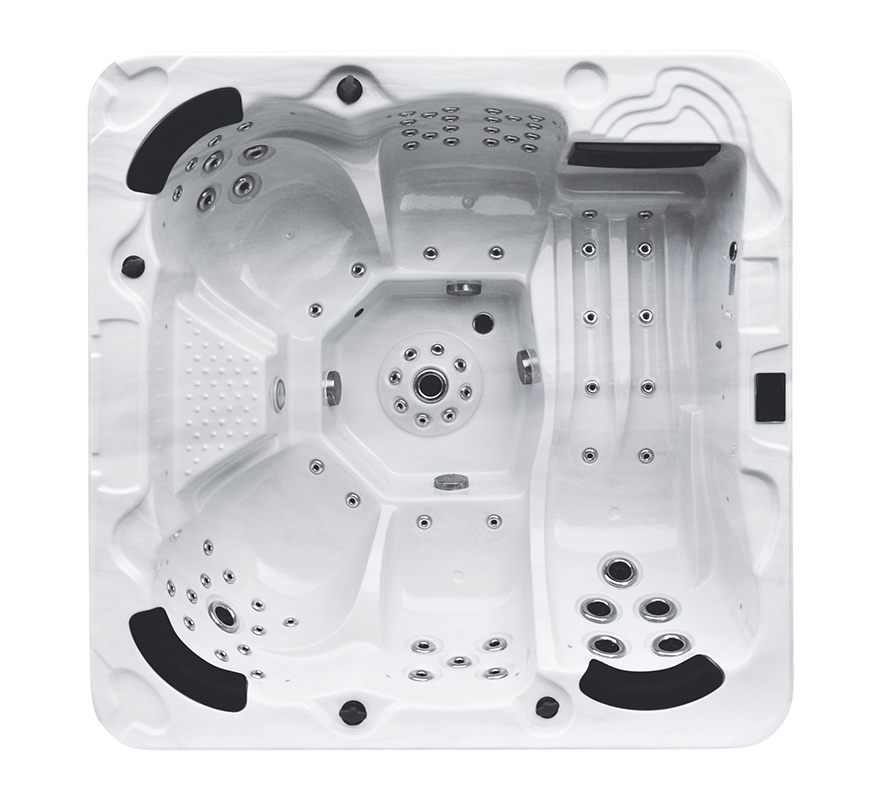

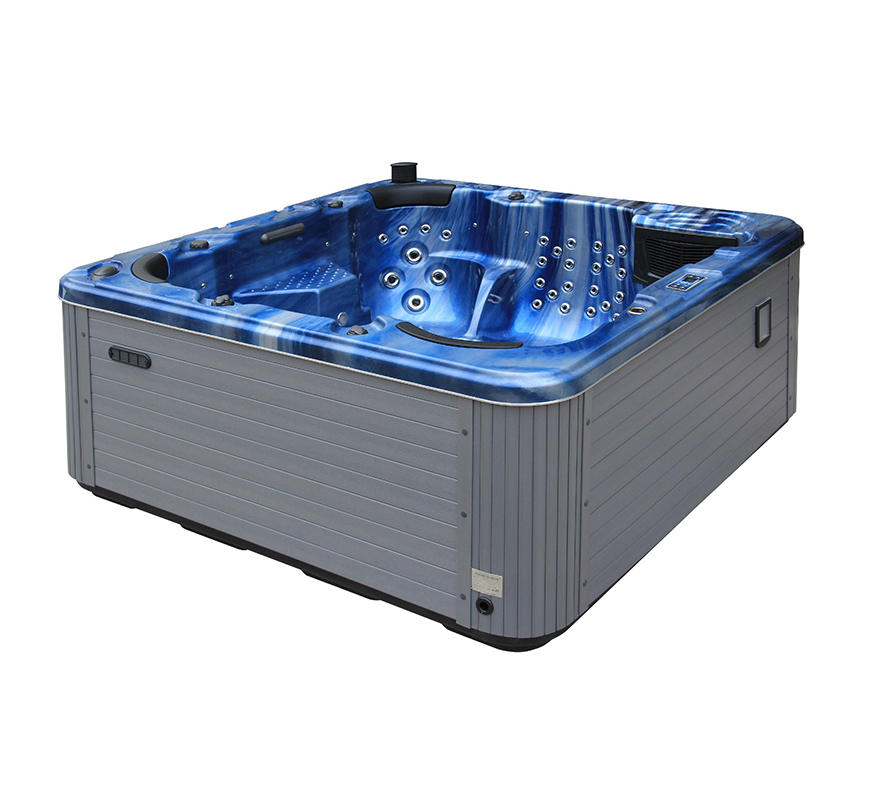

Model SR836

Size:2200mm*2200mm*950mm

seat capacity: 4 Persons

Gross weight: 350kg

Packing dimension: 2300mmx2300mmx1050mm

Container load: 5pcs/20ft; 10pcs/40ft

seat capacity: 4 Persons

Gross weight: 350kg

Packing dimension: 2300mmx2300mmx1050mm

Container load: 5pcs/20ft; 10pcs/40ft

Seating
Seating Capacity	4 Persons
Loung	1 Persons
Dimensions/Weight/ Container load
Product dimension	2200mm2200mm950mm
Packing dimension	2300mmx2300mmx1050mm
Weight - Dry/Filled	350KG/1580KG
Water capacity	325US Gallon/1230Liters
Container load	5pcs/20ft; 10pcs/40ft
Shell
Shell colors	19 color available
Shell material	Aristech Acrylic
Pumps
Jet pump 1	2.0HP
Jet pump 2	2.0HP
Jet pump 3	2.0HP
Circulation pump	0.53HP
Air blower	1.5HP
Electrics
Control system	America Balboa control
Max power consumption:	8700Watt 39.5A in 220V 50Hz
Heater (America Balboa brand)	3KW/220-240VAC
Underwater lighting	5″ LED
Jet Configurations
Total Jets (pc)	86
Massage jets (pc)	70
Air jets (pc)	16
Filtration
Filter	Front access filters
Effective Filtration Area	100 sq. ft.
Ozone Generator	50mg/h
Features
Water diverter(pc)	2
Air regulater(pc)	2
Suctions (pc)	4
Gate valves (pc)	8
Drain valve (pc)	1
Headrest pillows(pc)	3
Support frame	#304 Stainless steel
Overflow outlet (pc)	1
Skirt:	Brown/ Grey / Black color
